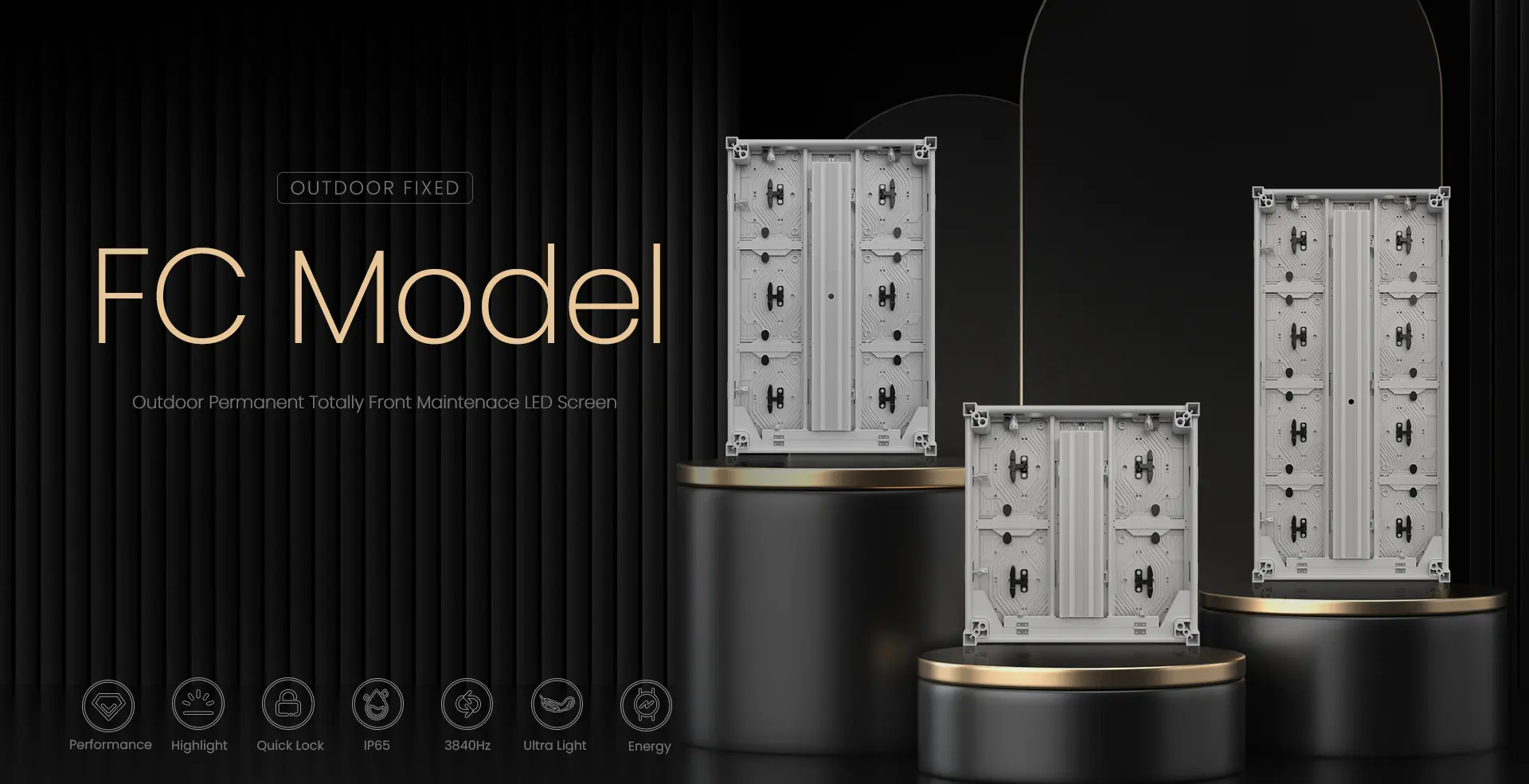

FC モデル
Enbon FC 超薄型低消費電力防水屋外固定設置 HD LED ディスプレイ | Enbon LED ディスプレイの製造

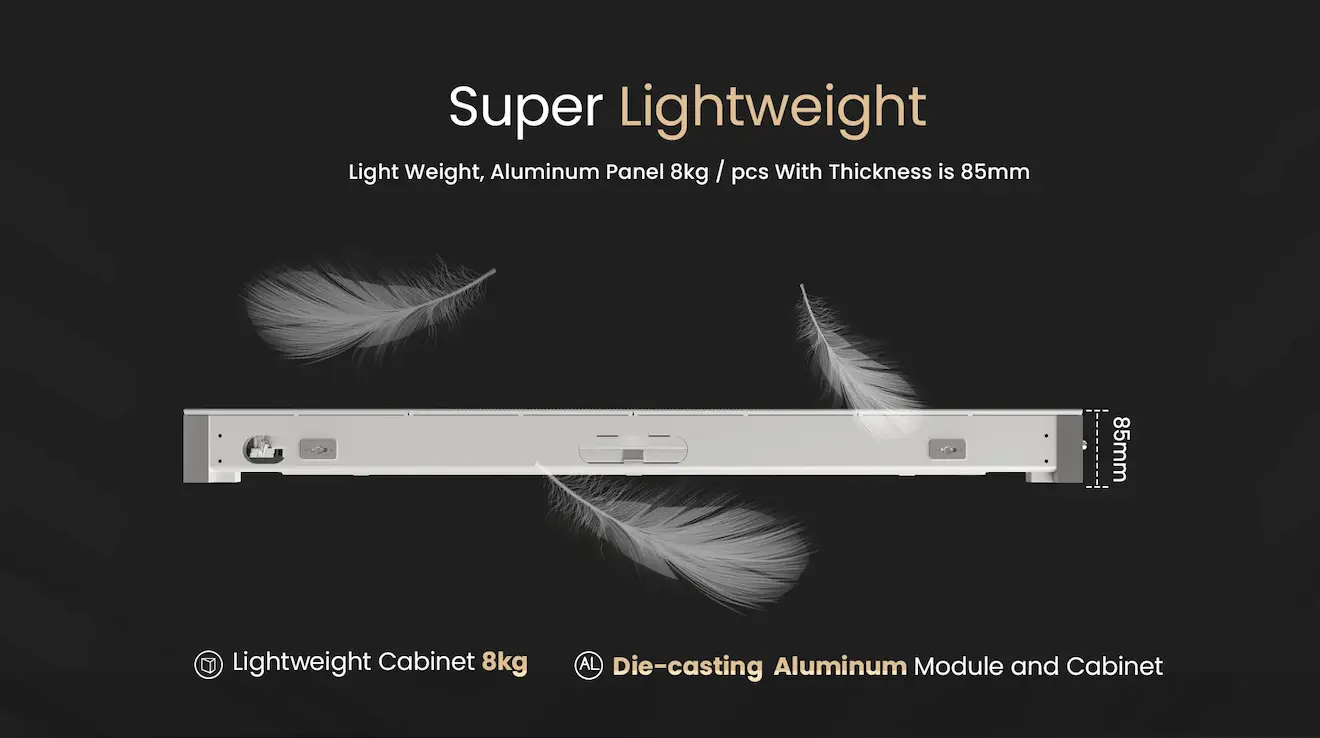

- 軽量キャビネット 8KG
- 特殊防水設計 : IP65

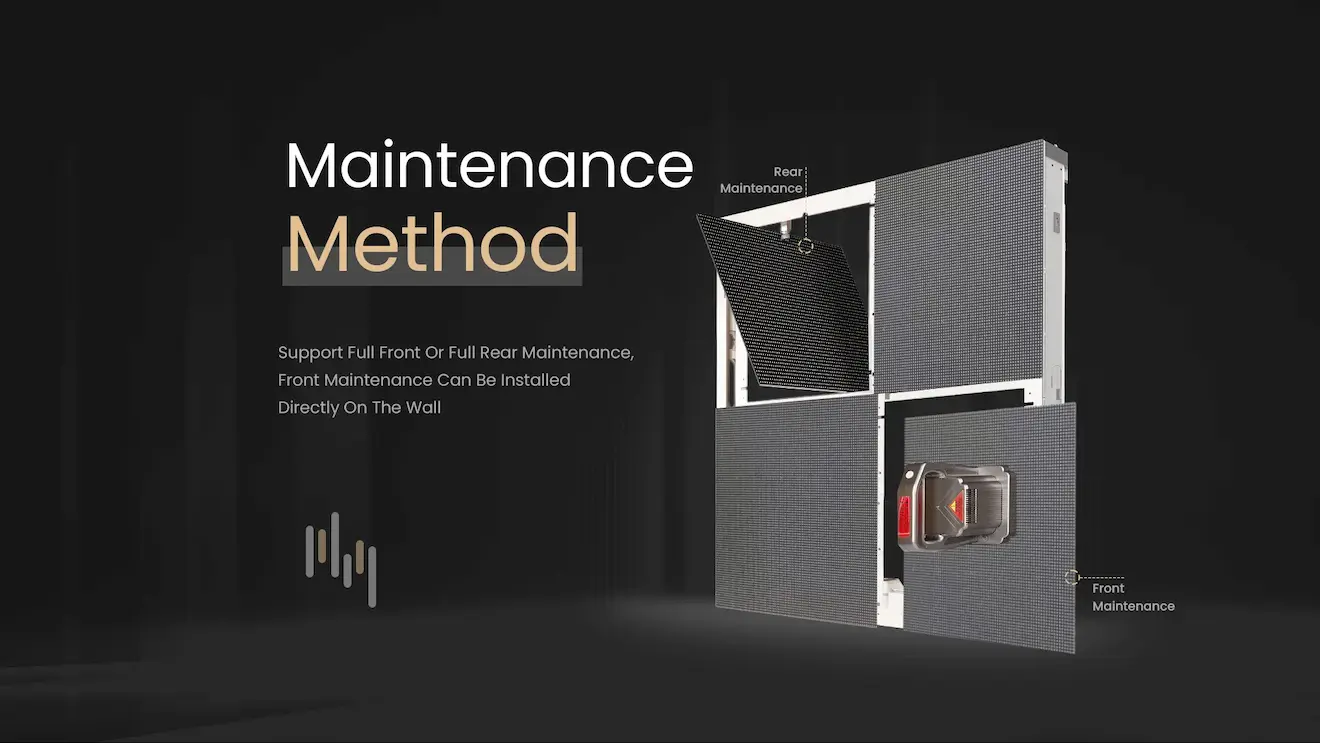

- フロントサービスとバックサービスのサポート

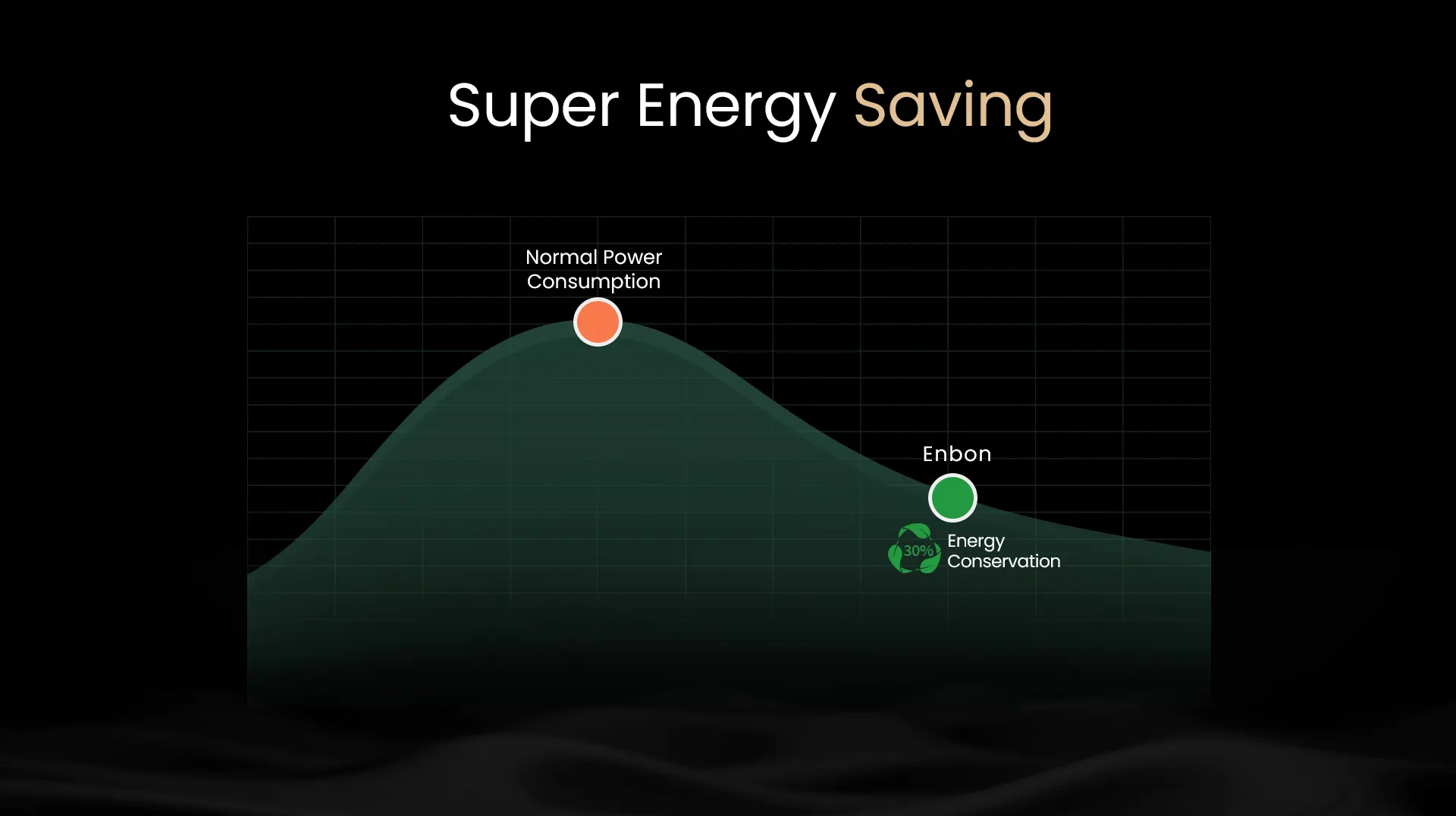

- 低消費電力
- 異なるモジュールが同じ HUB を使用する
| Item | Outdoor | |||||
|---|---|---|---|---|---|---|
| Pixel Pitch | 1.95 | 2.604 | 2.97 | 3.91 | ||
| LED lamp | SMD1415 | SMD1415 | SMD1415 | SMD1921 | ||
| Density(dots/m2) | 262144 | 112896 | 112896 | 65536 | ||
| Brightness | ≥4500 nits | ≥4500 nits | ≥4500 nits | ≥6000 nits | ||
| IP rating | IP65 | IP65 | IP65 | IP65 | ||

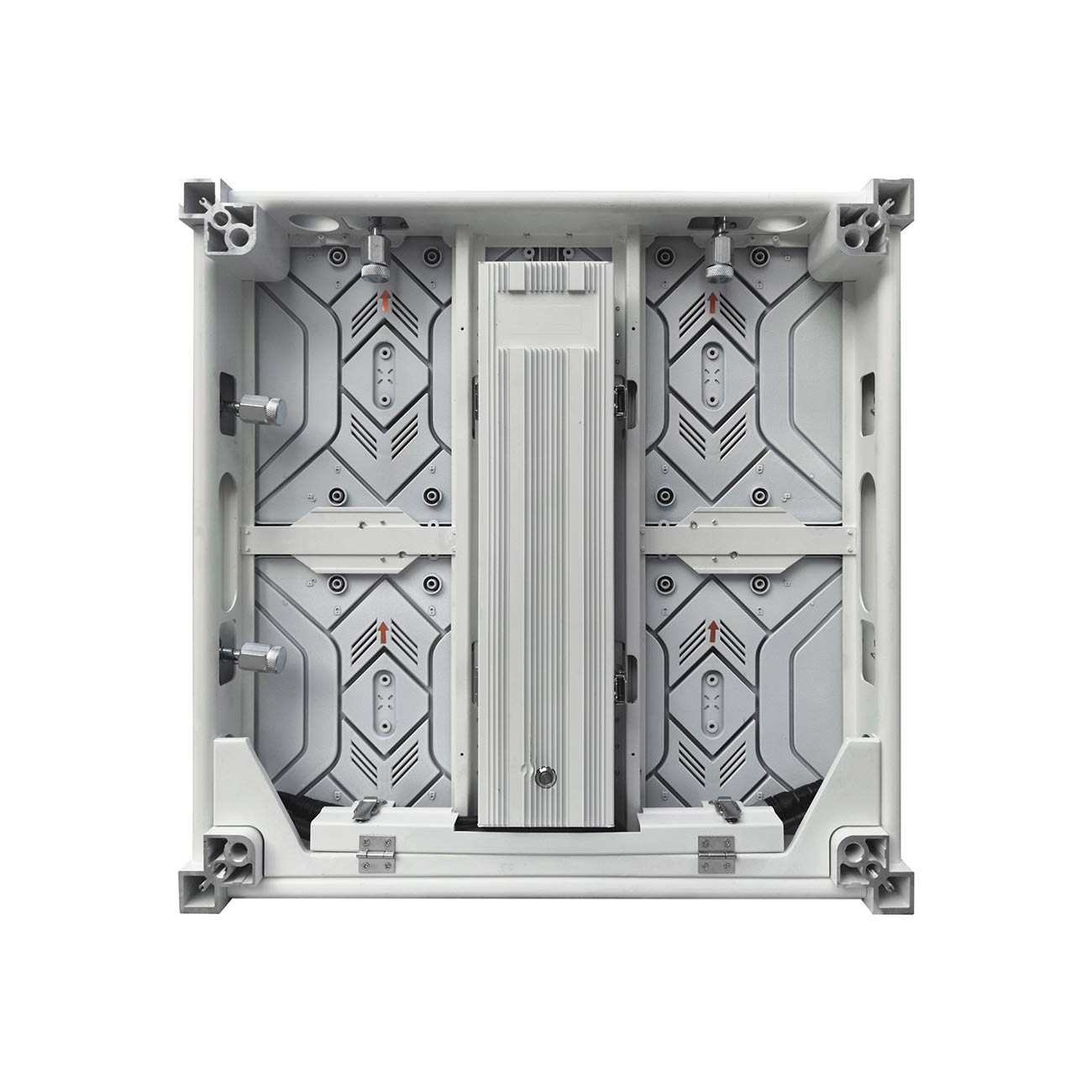

| Cabinet Materiel | Die-casting Aluminum | |||||
| Scan | 32scan | 24scan | 21scan | 16scan | ||
| Module weight | 1kg | 1kg | 1kg | 1kg | ||
| Cabinet Weight | 8kg | 8kg | 8kg | 8kg | ||
| Module size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | ||
| Cabinet size(mm) | 500*500*85 | 500*500*85 | 500*500*85 | 500*500*85 | ||
| Module pixel | 128*128dots | 96*96dots | 84*84dots | 64*64dots | ||
| Cabinet pixel | 256*256dots | 168*168dots | 168*168dots | 128*128dots | ||
| Max Power | 550w/sqm | 550w/sqm | 550w/sqm | 550w/sqm | ||
| Average Power | 185w/sqm | 185w/sqm | 185w/sqm | 185w/sqm | ||
| Viewing Angle | Horizontal 140(+70/-70) deg Vertical 140(+70/-70)deg | |||||
| Control way | synchronous/asynchronous | |||||
| Gray Scale | 16 bit | |||||
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Work humidity | 10% ~ 90% | |||||
| Work temperature | ﹣20 ~﹢65℃ | |||||

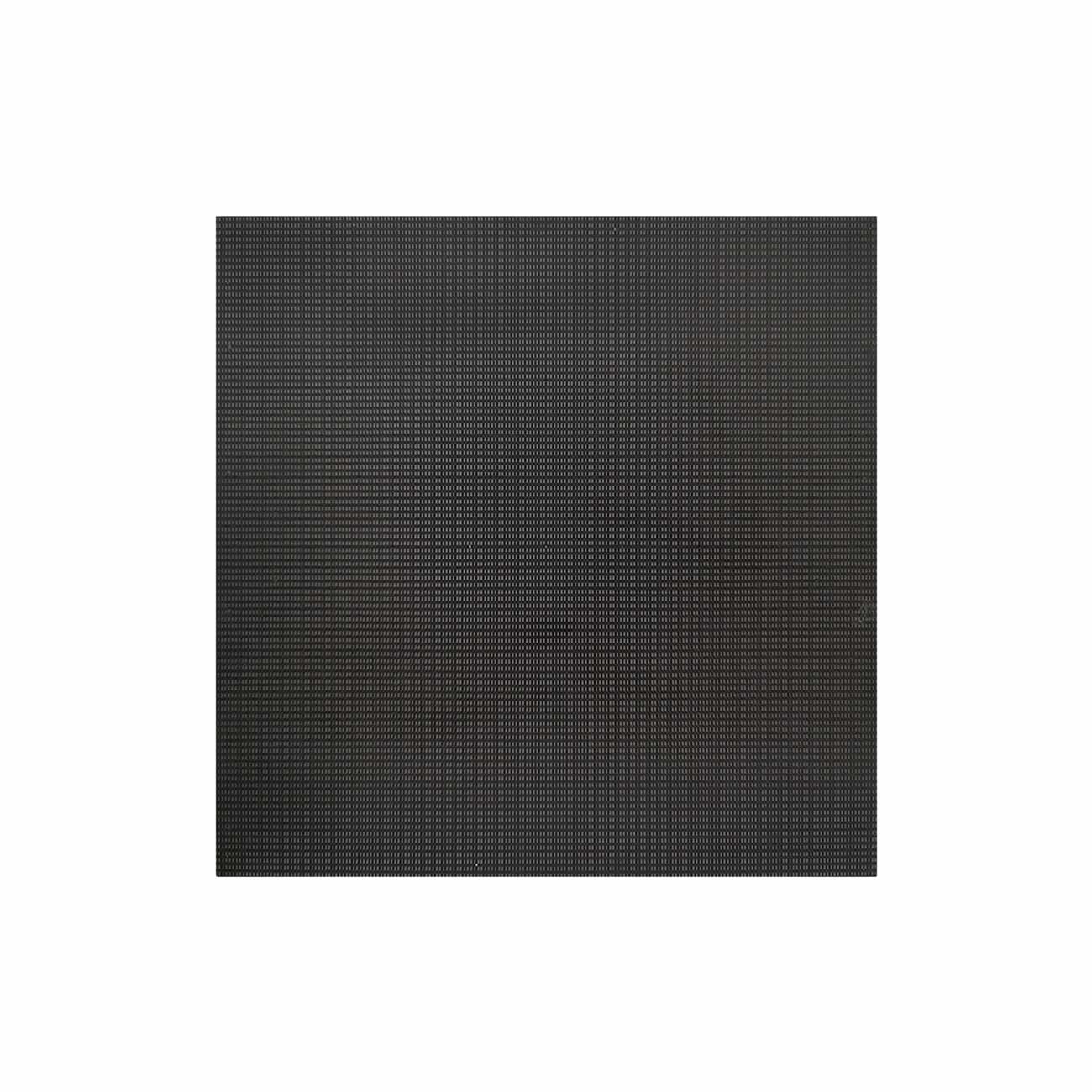

LED Module |
|
| Pixel Pitch | P1.95,P2.604,P2.97,P3.91 |
|---|---|
| LED lamp | SMD1415/1921 |
| Brightness | ≥4500nits |
| Module pixel | 128*128/96*96/84*84/64*64dots |
| Cabinet pixel | 256*256/168*168/128*128 |
Appearance |
|
| Module size | 250*250mm |
| Cabinet size | 500*500*85mm |
| Module weight | 1kg |
| Cabinet Weight | 8kg |
Working Environment |
|
| Work humidity | 10％ ～ 90％ |
| Work temperature | ﹣20 ～﹢65℃ |
System parameter |
|
| Operating system | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Gray scale | 16bit |
Power |
|
| Max Power | 550w/sqm |
| Average Power | 185w/sqm |
Waterproof grade |
|
| IP rating | IP65 |
Control system |
|
| Control way | Synchronous/Asynchronous |
| Viewing Angle | H140(+70/-70) deg V140(+70/-70)deg |
| Scan | 32scan,24sacn,21scan,16scan |
Material density |
|
| Density | 262144/1128961/65536dots |
| Cabinet Materiel | Die-casting Aluminum |
